Why I Still Sometimes Print Papers: And How I Do It Better?

There comes a time when you must read a long paper, book chapter, or text. This task feels too important to do on a PC or phone screen because you do not want to be distracted. This is the time I want to read long papers without distraction, but printing wastes paper, and e-readers are tricky.

Attenzione!
This post will be expanded soon!

tldr

If you’re dealing with Image-Based PDF: use Scantailor. Prepare images:

and then

If you’re dealing with True-Digital PDF:

and then

Why it might not be a good idea to implement your scholar workflow if you have something to do.

One idea is to use an eBook reader like Kindle Paperwhite or OnyxBox. Your eyes wouldn’t hurt cause of E Ink. You think: it is very cool I might be able to synchronize my highlights and handwritten notes with my PC environment, like Zotero library or something similar. At least I think like this.

This idea is definitely worth expanding. I’d like to write something about it in the future because this is something I somehow implemented. Before you jump straight to it, please read this warning: it won’t take one or two hours after which you will jump straight into the task with deep focus. It might, but I doubt it. You will implement your super productive scholar workflow, but you will only think about how cool it is and what new features you will add, resulting in picker attention to your reading plans.

If you have the whole weekend to read the paper before next week’s classes, feel free to experiment with your workflow. If you succeed, it will be the best feeling to read that paper. If you fail and would still need to manually copy eBook files between eBook reader/PC to get your highlights (ugh), you can work on it later.

Why would I print it, if it will take so much paper?

Back to the problem: you want to read a paper/book without wasting too much paper. Let’s analyze it: 500 pieces of A4 paper cost around 13 PLN. The printer toner, which was not produced by the producer, might cost around 0.0153 PLN per page. From this, we see the $0.0153 + 0.013 \approx 0.03$ PLN per page (not sheet).

Printing the 300 A4 page book will cost around $8$ PLN, which might be a little high for a home environment and needs. Here comes the idea of this blog post: you print many PDF pages on one A4 page. The standard solution is to print two pages side-by-side on a horizontally oriented paper page. This would cut the cost to 4 PLN.

I believe you can print 4 pages of a typical paper article (2x2 portrait) and keep it readable.

The reason why you should do it is not limited to money issues. When you can see four pages simultaneously, alongside your pen notes and highlights, it might be easier to read, think about, and discuss them with people. I believe it is better to hold at once hold in your eyesight more pages, more stuff people’s understanding reduces to (memorabilia, more Bacon’s token or what?).

This is only my opinion. I believe the purpose of reading philosophical papers, or any complex stuff in general, is to build a more holistic understanding of the text. That usually comes from absorbing the work as a whole. It’s like rereading a mathematical proof: at first it feels opaque, but after going through it several times, the underlying idea suddenly clicks. That click can feel almost addictive; like a drug for scholars.

How to print it 2x2?

I have the following snippet saved since pandemic times, around 2020, in my notes software, which I used before moving to Obsidian. Assuming you

you can

pdfCropMargins works great on true digital PDFs created using eg. MS Word or Latex. I like it more than pdfcrop - a tool shipped in texlive-extra-utils apt package. You might want to make some wrapper like

cat > ~/script/pdfcropmargins.sh <<'SH'
your/python/venv/path/python -m pdfCropMargins "$@"
SH

and invoke it like ~/script/pdfcropmargins.sh. This is what I was doing for many years before I switched to pipx.

Values --trim '-9.5mm -4mm -9.5mm -4mm' relate to the fact that cropping tools often leave some space, which we need very much, cause we want to shrink a big page into a small page. --offset '5mm 0mm' set the vertical space between sub-pages to 0 and horizontal to 5mm. See the cropping problem below for further details.

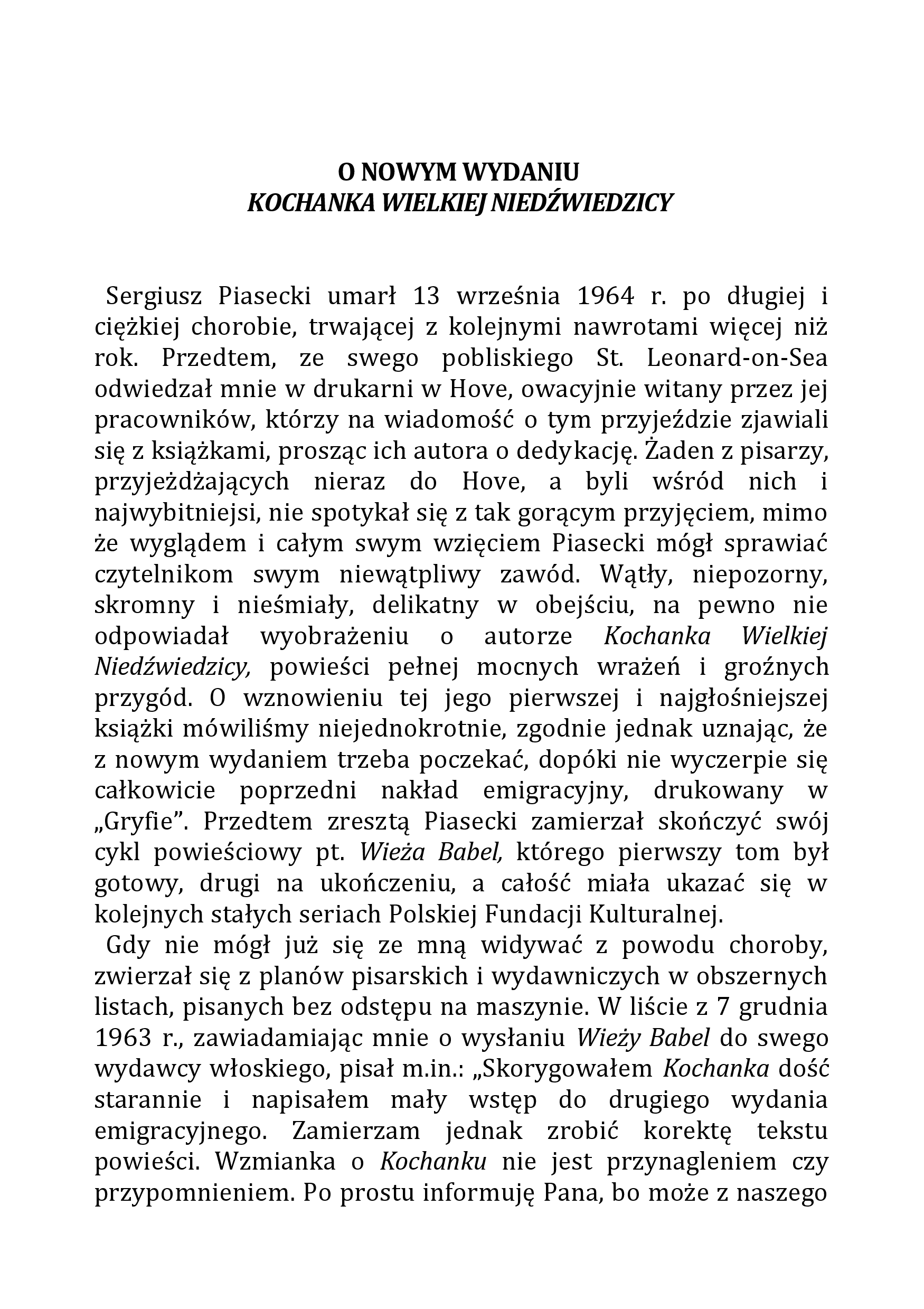

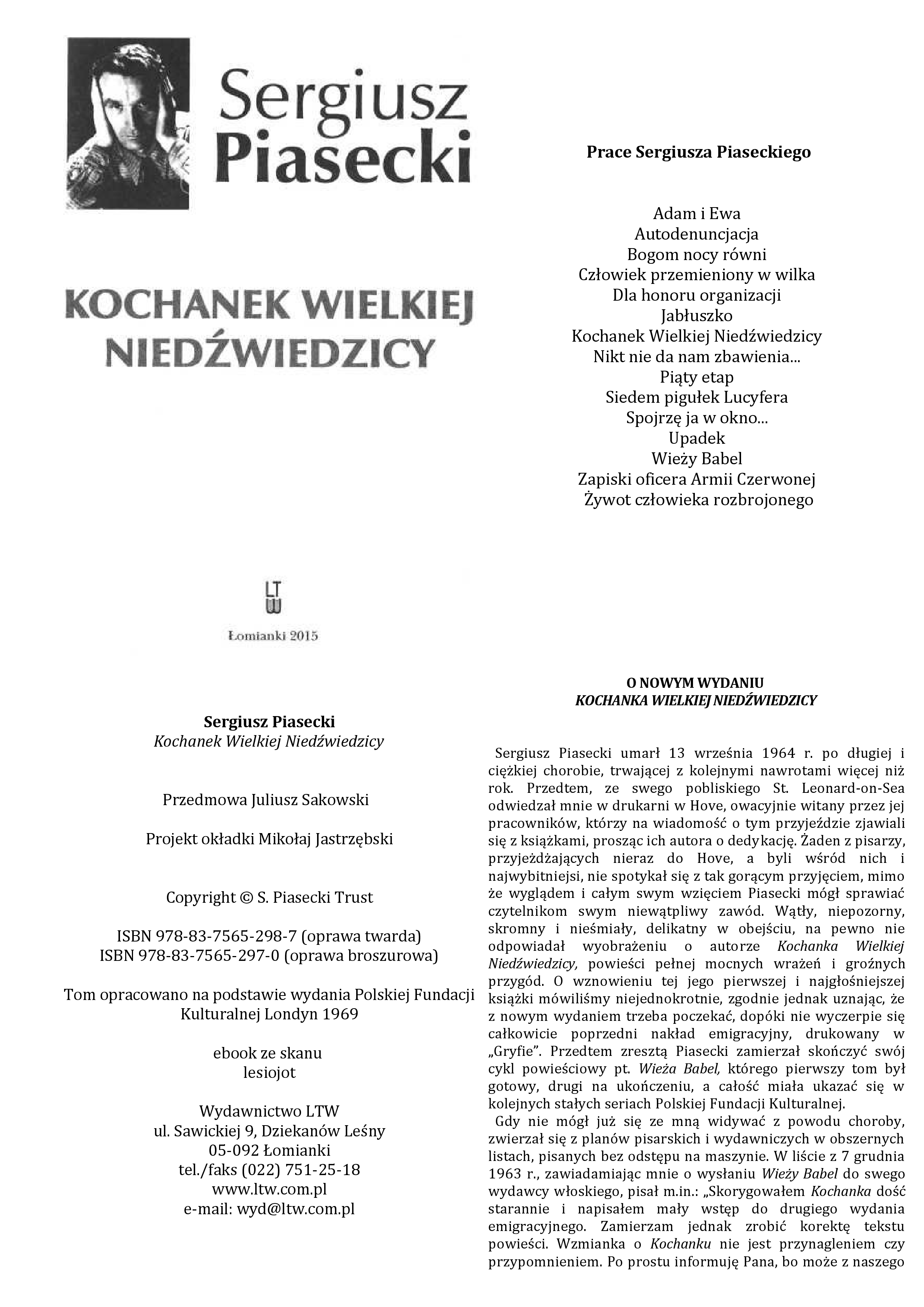

The result often varies depending on the input file. For example, it might work great for the typical A5 paper size used often for novels:

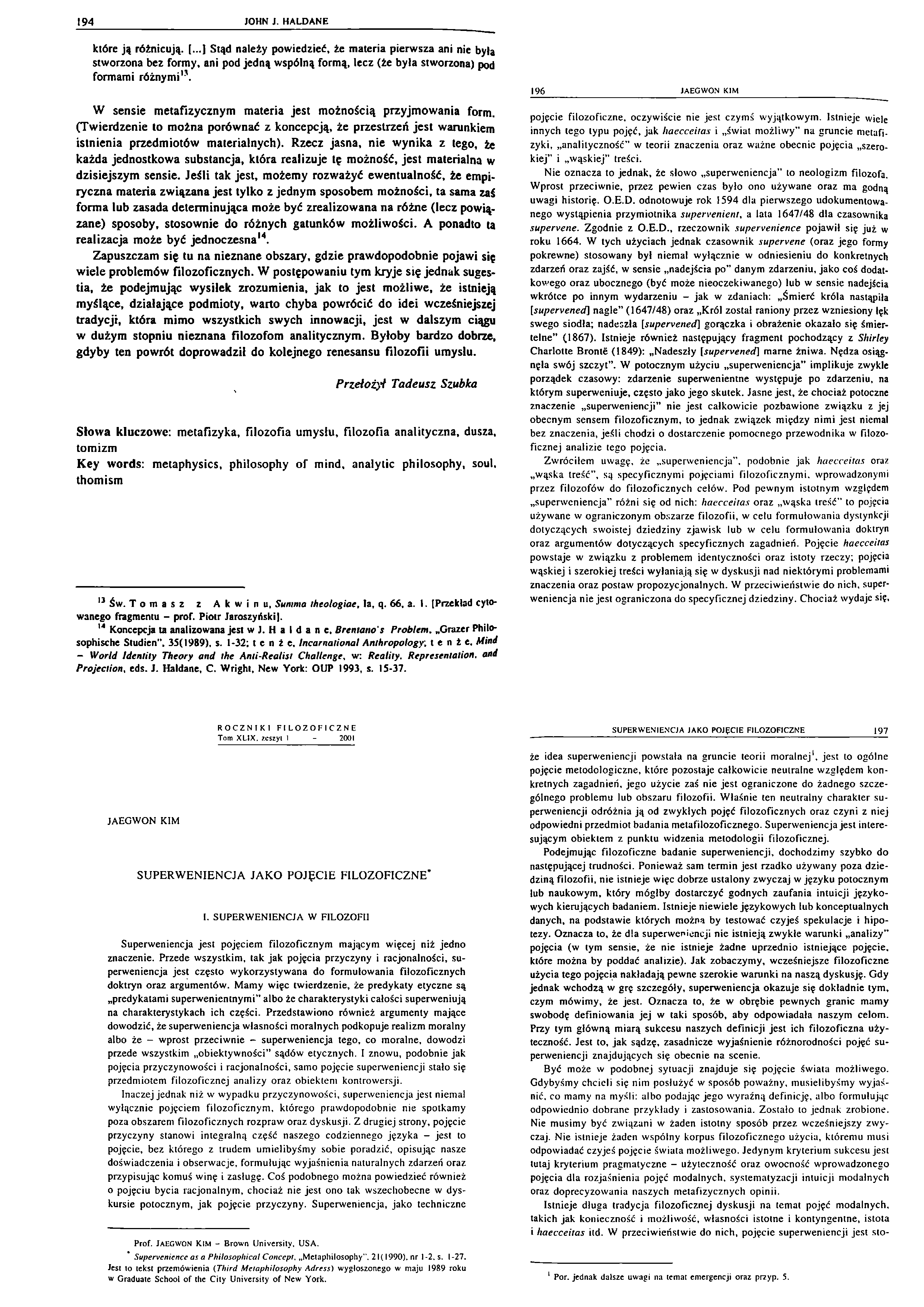

The 2x2 page I pasted above looks really good printed! Before I switched to E-Ink-based E-book readers, I printed and read many books like that.

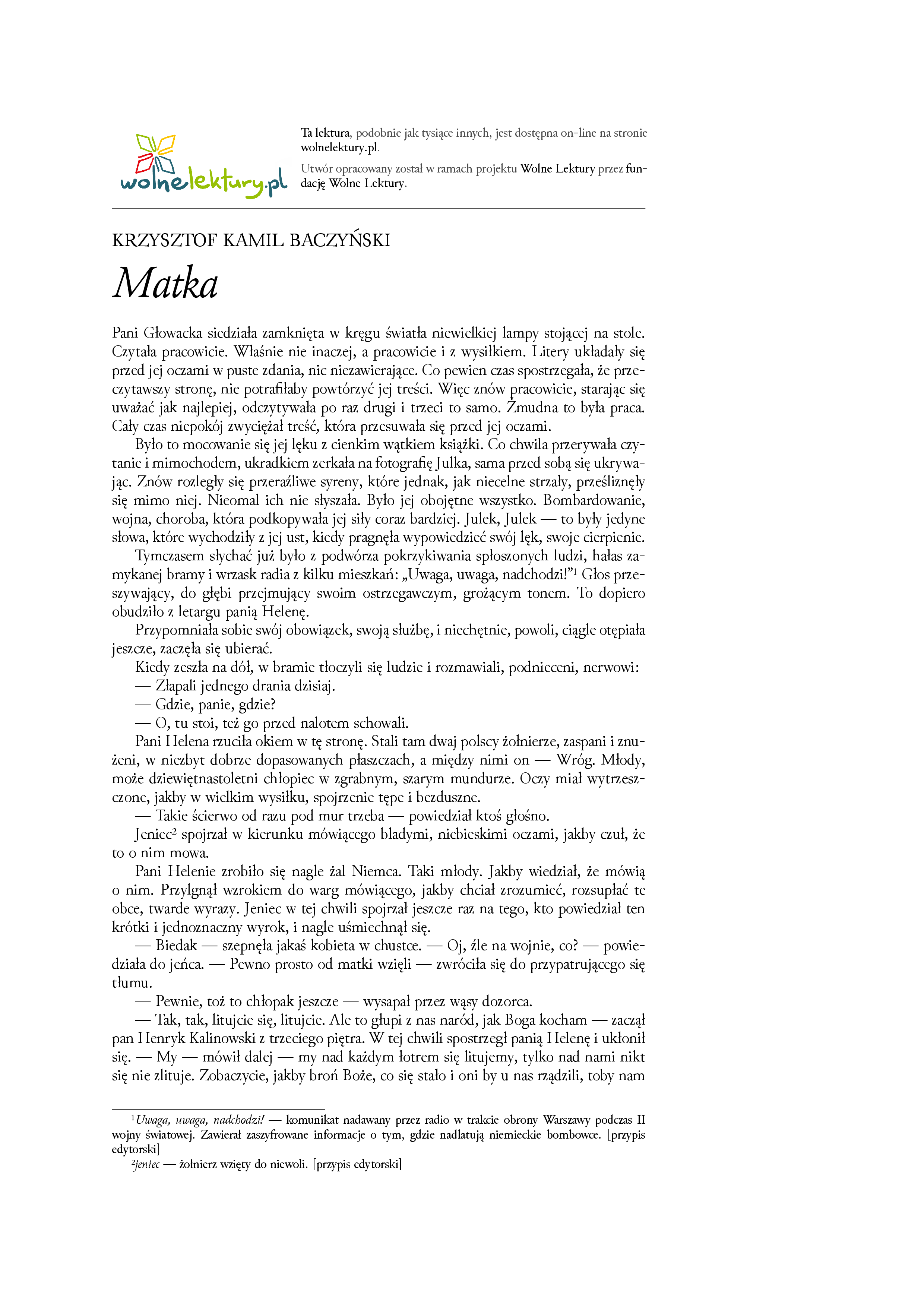

Unfortunately, we might not produce the best results when dealing with certain page sizes, like here:

You might have to fold this for reading, but it will be ok.

I would also do this for Image-Based PDFs if I wanted to do things fast and move along. Below, I want to present the approach that works better for Image-Based PDFs, which includes Human-In-The-Loop and uses Scantailor.

The cropping problem

The cropping is the most important part of preparing papers for printing: when you have a well-defined region you want to print, and every book page is a separate PDF page (see below to get what I mean), the rest is trivial.

pdfcrop works on digital PDFs where things are trivial - you estimate the interest region by looking at the PDF’s TextBox. On the other hand, I encourage you to look at those PDF “artifacts” in the best free PDF-edition software on the market - LibreOffice Draw.

Image-based PDFs are harder in that aspect. We have a solution for that problem, which I believe (not sure) uses some computer-vision techniques like threshold-out black-points around the region of interest ROI (obtained using some biggest cluster algorithm or mentioned OCR layer?).

What is the region of interest? Of course, it is the text you want to read. But does this include footnotes, a header (with information about the chapter and such), or a page number, which can be far down the text? The bigger the region of interest we have, the less readable the printed page will look (cause it will be smaller). There were times when I decided to cut page numbers to make text bigger, and then I would write page numbers with a pen on printed pages.

Scanned page case

We often have to deal with scans like this

For this, it is good to use software with a GUI to select ROI. I chose Scantailor Advanced for this task. Scantailor is no longer in active development, but it works for my purposes. I encourage you to try some forks of the original repo. I got Scantailor from flatpak.

Work with Scantailor consists of 6 stages: Fix orientation, Split Pages, Deskew, Select Content, Margins, and Output. You can read about those, but I will focus more on parameters/options crucial to our problem, ie, preparing a PDF for printing.

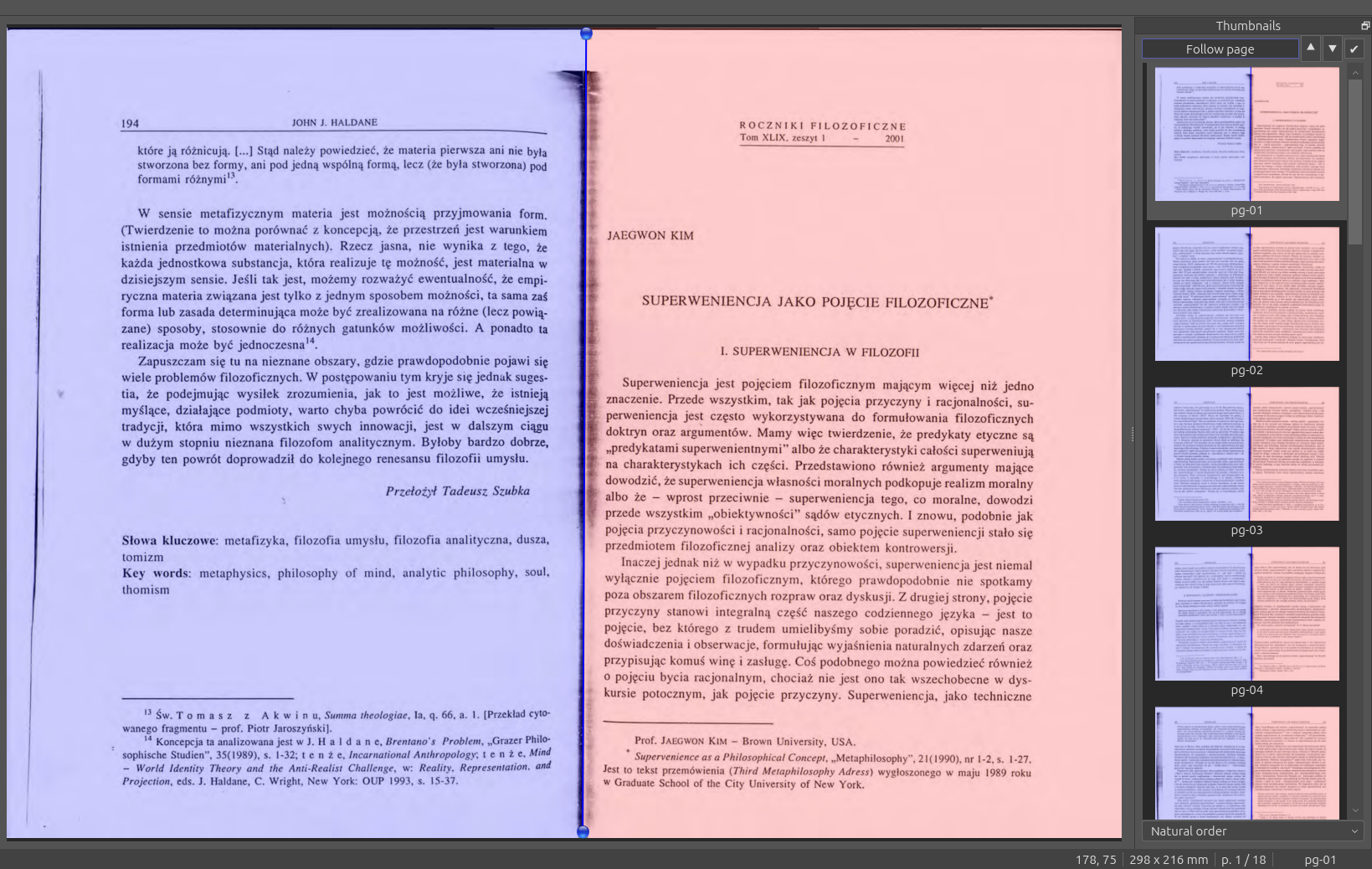

Page division works as expected:

Selecting contents works well. If something were to happen, you can adjust the boxes manually for each page you want.

It is usually a good idea to turn Margins->Alignment->Match size with other pages option off.

Also, Scantailor provides an elegant way to control threshold parameters:

After you are done, you join images into a PDF and OCR it. You can save the Scantailor project if you want - I sometimes have to work twice on the same book, for instance, when you see that the document does not meet your needs after printing, and I have already closed my PC.

Sometimes you need to print the page to see if it is readable for you.

You can remove temporary files if you are satisfied with the result out2x2.pdf.

rm -r images* doc*.pdf out_all.pdf out.pdf out_c.pdf dst.tif >/dev/null

ocrmypdf is a cool wrapper for Google tesseract. -l pol lets you select the language for tesseract OCR.
